Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 320 → 575V ac |
| Output Voltage | 24V dc |
| Output Current | 20A |
| Power Rating | 480W |
| Electrical Phase | 3 |
| Type | Power Supply |
| Height | 125mm |
| Series | SITOP |
| Output Voltage Adjustment Range | 24 → 28V |
| Standards Met | CE Certified, cULus |
| Depth | 125mm |
| Width | 70mm |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 100mV |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |
| MTBF | 590573h |
| Efficiency | 94% |
| Load Regulation | 0.2 (Static Load) %, 1 (Dynamic Load) % |

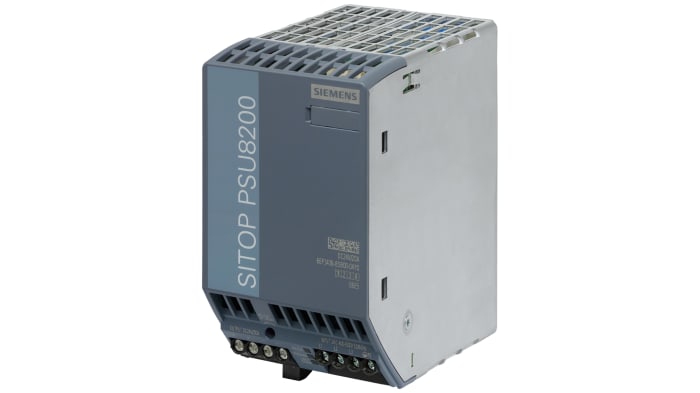

Siemens Stabilised Power Supply Input, 20A, 24V DC – SITOP Series – 6EP34368SB000AY0
Keep automated production plants running smoothly with this dynamic power supply unit from Siemens. The reliable 24V device plays a critical role in high plant availability and is monitored and operated with the use of a Siemens PCS 7-OS. The unit’s efficient operation, with low losses through its entire load range, reduces energy consumption. It records power data from all outputs, which is then processed in energy management systems. The advanced performance of this power supply makes it a reliable and high-functioning choice. You’ll find it used in automotive industries and special-purpose machine manufacturing with demanding environments.
• Can be integrated into a digital environment, thanks to its open communication system
• Wide-range input so it can be connected to any supply system and withstand large voltage fluctuations
• Power-boost function briefly delivers up to three times the rated current from input to output to start large loads
Can data from this power supply by transferred to a condition-monitoring device?
Yes, important operating information such as current, voltage, operating hours and temperature can be transferred via the power supply’s diagnostic interface to a controller. From there it’s possible to incorporate the data into your condition-monitoring system.
