Description
| คุณสมบัติ | Value |
| Power Rating | 1.1 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 3.2 A, 4.1 A |
| Output Frequency | 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz |
| For Use With | AC Motors |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profinet |
| STO | Yes |
| Drive Type | Vector Control |
| Special Features | Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control |
| Overall Depth | 173mm |
| Overall Width | 178mm |
| Standards Met | CE, C-Tick (RCM), cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL |
| Interface | Ethernet/IP, PROFINET |
| Overall Length | 73mm |
SINAMICS G120C – Compact Inverters & Accessories
SINAMICS G120C compact inverters offer a well-balanced combination of features to address a wide range of applications.
The inverter drives are compact, rugged devices that are easy to operate and can be optionally equipped with a basic or advanced operator panel.
Features & Benefits
G120C with a compact design
Side-by-side design
High power density, low envelope dimensions
Simple installation, Low space requirement
Use in small control cabinets, close to the machine
Optimized parameter set
Optimized commissioning
BOP-2 or IOP operator panels can be used
Integrated USB connection
Simple and fast software parameter assignment
Simple to use during commissioning and in operation
High degree of service friendliness, simple maintenance
Plug-in terminals
Cloning function using BOP-2 or SD card
Operating hours counter for “drive on” and “motor on”
Fast mechanical installation
Intuitive standard commissioning
Energy-efficient, sensorless vector control
Automatic flux reduction with V/f ECO
Integrated energy saving computer
Safety Integrated (STO)
Integrated communication interfaces
Coated modules
Operation up to an ambient temperature of 60° (please see derating data)

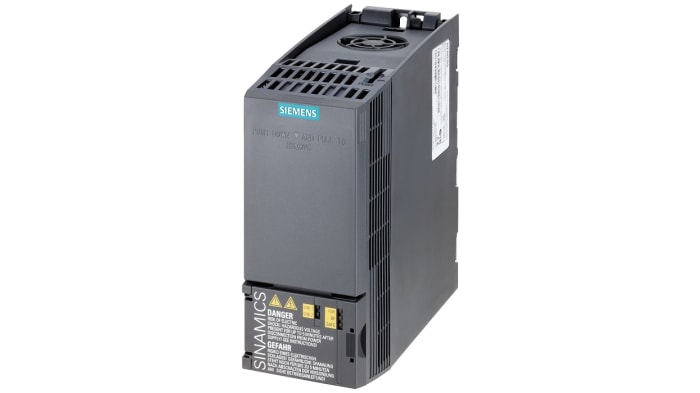

Siemens Inverter Drive, 0.75kW, 400V AC Supply Voltage – SINAMICS G120C Series – 6SL3210-1KE13-2AF2
Integrate this Siemens inverter drive into your industrial applications to control machines such as compressors, pumps and extruders. It features integrated digital and analogue inputs, as well as an integrated PROFINET field bus interface, to enable fast commissioning and reliable data transmission. The drive also includes improved safety functions to enhance your work environment. These include a PROFIsafe software layer that’s integrated into the PROFINET bus, along with an STO (safe torque off) function to safely stop the drive.
• Variable frequency with flux current control special features provide excellent flexibility
• Compact dimensions of 73 (W) x 173 (H) x 178 (D) and side-by-side mounting enable convenient placement
• Six digital inputs for a wider range of interfaces
How and where do I mount this drive?
This unit is designed to be easily mounted on any flat surface using screws. It’s designed to slot into your control cabinet panels alongside the power module. An IP20 (ingress protection) rating indicates it’s touch-proof and safe to handle, but it should be protected from condensation and ice formation.
