Description
| คุณสมบัติ | Value |
| Power Rating | 4 kW, 5.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 12.8 A, 16.5 A |
| Output Frequency | 0 → 550Hz |
| For Use With | SINAMICS G120C |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profibus |
| STO | Yes |
| Drive Type | Vector Control |
| Mounting Type | Panel Mount |
| Overall Depth | 196mm |
| Overall Length | 100mm |
| Interface | PROFIBUS-DP |
| Standards Met | CE, c-tick, cULus |
| Overall Width | 203mm |

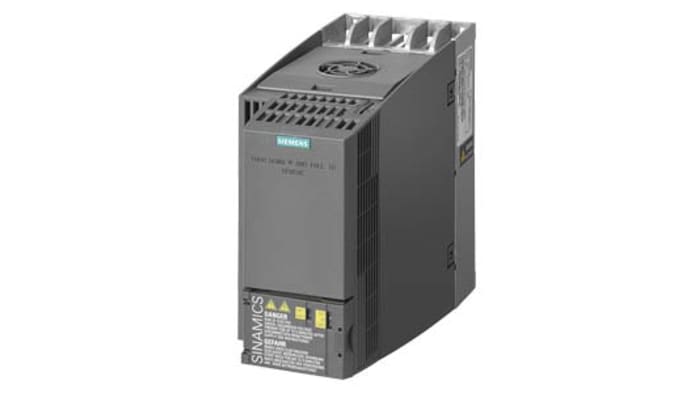

Siemens Inverter Drive, 3 Phase, 400V AC – SINAMICS G120C Series – 6SL3210-1KE21-3UP1
This Siemens inverter drive offers the high productivity and specialised performance required by system integrators, OEMs (original equipment manufacturers) and distributors. It makes it easy to automate motion sequence systems such as conveyors and compressors, and can control induction motors in a power range of 0.37kW up to 18.5kW (kilowatts). State-of-the-art features including sensorless vector and variable frequency controls provide excellent versatility and performance, while the PROFIBUS fieldbus interface makes this unit a versatile addition to your system.
• Compact dimensions of 203 (W) x 100mm (L) to maximise space in machine control enclosures and control cabinets
• Operating temperature range of -10°C to +40°C for use in demanding industrial environments
• Integrated fan enables air cooling for more effective temperature control
Is it possible to stop this drive in an emergency?
Yes. This drive includes the safety function STO (safe torque off) as standard, which will stop the drive when needed.
How do I mount this inverter drive?
This unit is designed for panel mounting. It comes with plug-in screw terminals for quick and simple installation.
