Description
| คุณสมบัติ | Value |
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 18.2 A, 21.5 A |
| Output Frequency | 0 → 550Hz |
| For Use With | AC Motors |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profinet |
| STO | Yes |
| Control Panel | Yes |
| Mounting Type | Panel Mount |
| Filter Included | Yes |
| Overall Length | 196mm |
| Overall Width | 100mm |
| Interface | Ethernet/IP, PROFINET |
| Standards Met | CE, c-tick, cULus |
| Overall Depth | 208mm |
SINAMICS G120C – Compact Inverters & Accessories
SINAMICS G120C compact inverters offer a well-balanced combination of features to address a wide range of applications.
The inverter drives are compact, rugged devices that are easy to operate and can be optionally equipped with a basic or advanced operator panel.
Features & Benefits
G120C with a compact design
Side-by-side design
High power density, low envelope dimensions
Simple installation, Low space requirement
Use in small control cabinets, close to the machine
Optimized parameter set
Optimized commissioning
BOP-2 or IOP operator panels can be used
Integrated USB connection
Simple and fast software parameter assignment
Simple to use during commissioning and in operation
High degree of service friendliness, simple maintenance
Plug-in terminals
Cloning function using BOP-2 or SD card
Operating hours counter for “drive on” and “motor on”
Fast mechanical installation
Intuitive standard commissioning
Energy-efficient, sensorless vector control
Automatic flux reduction with V/f ECO
Integrated energy saving computer
Safety Integrated (STO)
Integrated communication interfaces
Coated modules
Operation up to an ambient temperature of 60° (please see derating data)

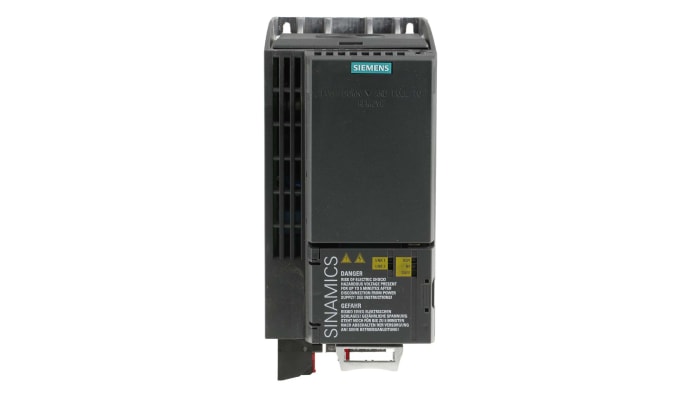

Siemens Inverter Drive, 5.5kW, 400V AC Supply Voltage – SINAMICS G120C Series – 6SL3210-1KE21-7AF1
Enjoy convenient control of motors for compressors, pumps and basic handling machines with this inverter drive from Siemens. It delivers high productivity and tailored performance, and is designed for moisture-safe control cabinet panel mounting alongside a compatible power module. It offers high power density in a compact unit that’s 100m wide and can be fitted neatly into busy setups. The device includes vector control and comes with automatic flux reduction, which provides a high level of energy efficiency.
• PROFINET field bus communication type provides fast, reliable data transmission
• Sensor-less vector control optimises energy consumption
• Operates safely at ambient temperatures up to +60°C for use in demanding environments
Does this device include any safety features?
Yes, the unit features STO (safe torque off) technology, which safely stops drives. The PROFIsafe software layer ensures the PROFINET bus runs smoothly.
How does this unit improve energy consumption?
In addition to the automatic flux reduction, this device includes an energy-saving and energy-consumption calculator. This allows you to keep a close eye on energy use and make adjustments as necessary.
