Description
| คุณสมบัติ | Value |
| Power Rating | 7.5 kW, 11 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 24.1 A, 33 A |
| Output Frequency | 0 → 550Hz |
| For Use With | SINAMICS G120C |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profibus |
| Drive Type | Vector Control |
| Mounting Type | Panel Mount |
| Overall Width | 203mm |
| Overall Length | 140mm |
| Overall Depth | 295mm |

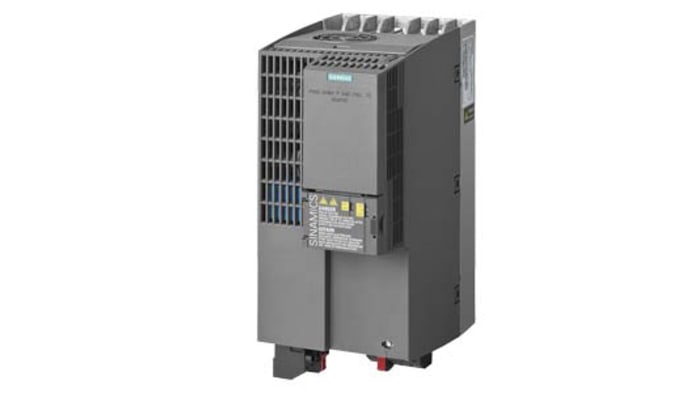

Siemens Inverter Drive
The Siemens SINAMICS G120C 3-phase inverter drive comes in 24.1A, 33A current with 7.5kW, 11kW power. It belongs to 6SL3210 inverter series. This is available with vector control drive type without an OS sensor. It has a 6 digital and 1 analogue input as well as 2 digital and 1 analogue output.
Features and Benefits
• Air cooling using an integrated fan
• Ambient Temperature from -10°C and 40°C
• Panel mount inverter drive
• Plug-in screw terminals for all sides
• Profibus field bus communication type
• PTC, KTY and Thermo-Click interface
• Wide range of output frequency
Applications
• HVDC power transmission
• HVDC power transmission
• Variable frequency drives
• Variable frequency drives
Certifications
• CE approved• C-Tick (RCM) approval• CUL certified• IP20 rating• UL certified
