Description
| คุณสมบัติ | Value |
| Power Rating | 15 kW, 18.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V |
| Current Rating | 45.2 A, 48.2 A |
| Output Frequency | 0 → 550Hz |
| For Use With | SINAMICS G120C |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profibus |
| Drive Type | Vector Control |
| STO | Yes |
| Mounting Type | Panel Mount |
| Overall Length | 140mm |
| Overall Width | 203mm |
| Overall Depth | 295mm |

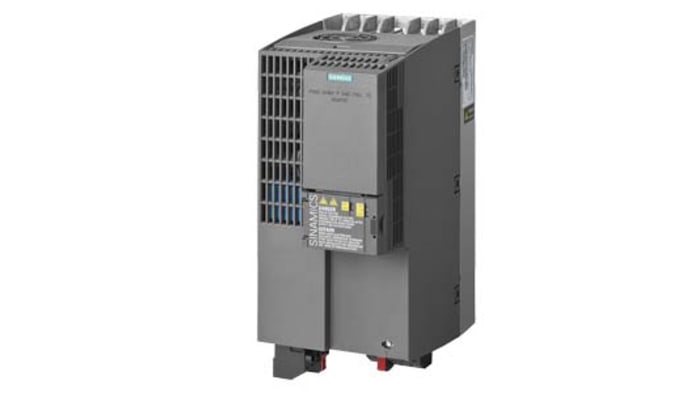

Siemens Inverter Drive
The Siemens SINAMICS G120C 3-phase inverter drive from the 6SL3210 inverter series. The inverter drive has an electrical rating of 400V, 45.2A, 48.2A, 15kW and 18.5kW at 550Hz. It is available with a vector control drive without an OS sensor. It has 6 digital and 1 analogue input, as well as 2 digital and 1 analogue output.
Features and Benefits
• Air cooling using an integrated fan
• Ambient temperature ranges between -10°C and 40°C
• Panel mount inverter drive
• Plug in screw terminals for all sides
• Profibus field bus communication type
• PTC, KTY and thermo click interface
• Wide range of output frequency
Applications
• HVDC power transmission
• Variable frequency drives
Certifications
• CE certified
• C-Tick (RCM) approval
• CUL certified
• IP20 rating
• UL approved
