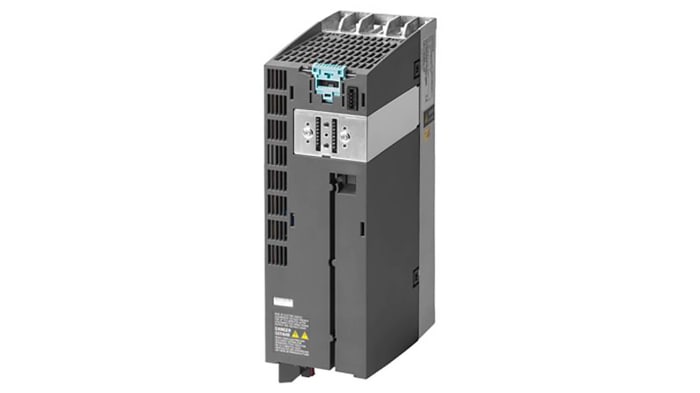

Siemens 6SL3210-1PE21-4AL0 PM240-2 Power Module, 3-Phase In, 200 Hz, 550 Hz Out, 5.5 kW, 380 → 480 V ac, 17.2 A

Description

คุณสมบัติ	Value
Power Rating	5.5 kW
Phase	3
Supply Voltage	380 → 480 V ac
Current Rating	17.2 A
Output Frequency	200 Hz, 550 Hz
For Use With	Sinamics G120
Series	PM240-2
IP Rating	IP20
STO	No

The Siemens power module has 6 phases for input/output and used class A. It has 0.97? efficiency and it has 0.15kw of power loss. It is 165mm deep.

Its net weight is 3.10 kg
Degree of protection is IP20
