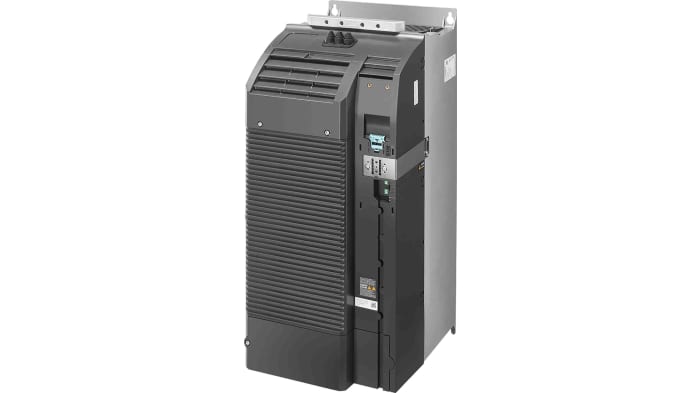

Siemens 6SL3210-1PE32-1UL0 PM240-2 Power Module, 3-Phase In, 200Hz Out, 110 kW, 480 V ac, 198 A

Description

คุณสมบัติ	Value
Power Rating	110 kW
Phase	3
Supply Voltage	480 V ac
Current Rating	198 A
Output Frequency	200Hz
For Use With	AC Motors
Series	PM240-2
IP Rating	IP20
STO	Yes

The Siemens PM240-2 3-phase power module has power high overload of 90kW and power low overload of 110kW. It is without filter with built-in braking chopper.

Line voltage: 380V to 480V
Rated current: 198A
Rated voltage: 400V
IP20 rated
Internal air cooling
