Description
| คุณสมบัติ | Value |
| Power Rating | 2.2 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 4.8 A, 5.6 A |
| Output Frequency | 0 → 550Hz |
| For Use With | AC Motors |
| Series | SINAMICS V20 |
| IP Rating | IP20 |
| Field Bus Communication Type | Modbus |
| STO | No |
| Control Panel | Yes |
| Filter Included | Yes |
| Overall Width | 166mm |
| Overall Depth | 146mm |
| Overall Length | 90mm |
| Interface | Modbus RTU, USS |

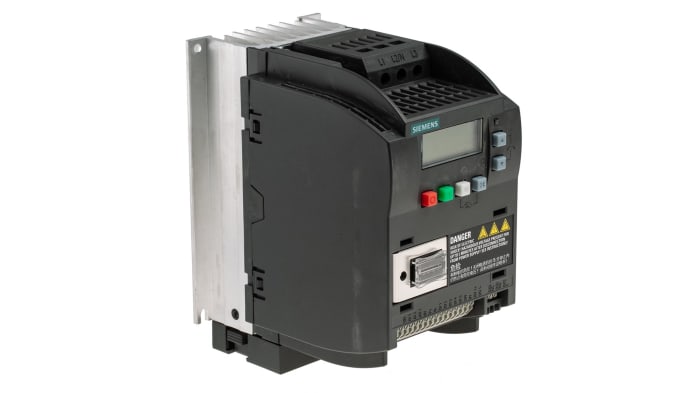

Siemens Inverter Drive, 3 Phase, 400V AC – SINAMICS V20 Series – 6SL3210-5BE22-2CV0
Automate motion sequence systems such as compressors, conveyors, pumps and fans with this three-phase inverter drive from Siemens. It’s an efficient and rugged choice, with features including integrated energy and water-flow monitoring that let your track power needs. An idle-state hibernation mode is on hand to help you conserve energy. The unit can work in extreme environmental conditions thanks to the advanced cooling design and coated electronics board, which enable operation at temperatures from -10°C up to +60°C.
• Output frequency of 0 to 550Hz and a wide voltage range offer impressive capacity
• USS (unitized substation)and MODBUS RTU (remote terminal unit) at terminals for versatile use
• ECO mode makes for reliable energy efficiency
How do I mount this unit?
This inverter can be installed using either push-through, wall or side-by-side mounts, for a variety of possible placements to suit your system.
What is the Sinamics V20 series?
The Sinamics V20 series is a range of frequency converters designed for use with simple motion sequences. The converters are available in nine different sizes in the power range 0.12kW to 30kW.
