Description
| คุณสมบัติ | Value |
| Power Rating | 4 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 8.2 A, 8.8 A |
| Output Frequency | 0 → 550Hz |
| For Use With | AC Motors |
| Series | SINAMICS V20 |
| IP Rating | IP20 |
| Field Bus Communication Type | Modbus |
| STO | No |
| Control Panel | Yes |
| Filter Included | Yes |
| Overall Length | 140mm |
| Overall Depth | 165mm |
| Standards Met | CE Certified, cULus Listed |
| Overall Width | 160mm |

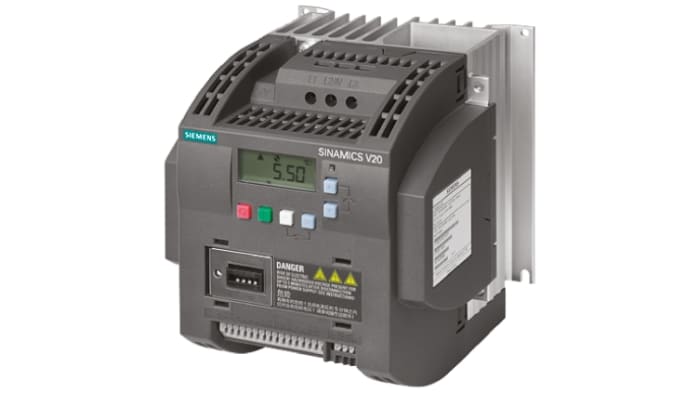

Siemens Filtered Inverter Drive, 400V AC, 4kW – SINAMICS V20 Series – 6SL3210-5BE24-0CV0
Automatically regulate power to your appliances using this inverter drive from Siemens. The internal rectifier efficiently converts AC (alternating current) voltage to DC (direct current) voltage to power the attached equipment. This device has a supply voltage of 400V and a power rating of 4kW, making it a good choice for use in high-power installations. It’s commonly used for devices such as compressors, conveyors and single drives in the process industry.
• Broad operating temperature range of -10°C to +60°C for use in a variety of demanding environments
• ECO mode ensures intelligent standby operations to conserve energy
• Compact dimensions of 140 (length) x 160 (width) x 165mm (depth) for space efficiency
• IP20 (ingress protection) rating for protection against wires and tools greater than 12mm in size
• Advanced cooling design with an external fan to prevent overheating
How do I mount this inverter drive?
This versatile inverter drive is suitable for push-through mounting, wall mounting or side-by-side mounting. These methods make it simple to install without the need for specialised tools and allow you to choose the installation method that’s most appropriate for your setup.
