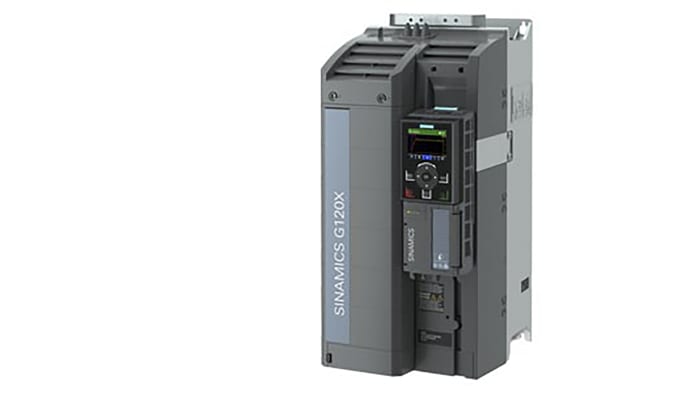

Description
| คุณสมบัติ | Value |
| Power Rating | 18.5 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V ac |
| Current Rating | 37 A |
| For Use With | SINAMICS G120X |
| Series | SINAMICS G120X |
| IP Rating | IP20 |
| Field Bus Communication Type | Profinet |
| Drive Type | PID Control |
| STO | Yes |
| Control Panel | Yes |
| Mounting Type | Wall Mount |
| Standards Met | CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed |
| Special Features | Closed Loop Control |
| Interface | Ethernet |
| Overall Length | 200mm |
| Function | Motor Control |
| Overall Depth | 472mm |
| Overall Width | 239mm |
Power units with DC link reactor for extremely high active power component thanks to efficient converter topology – for the same drive power, the converter requires a lower line current than comparable converters
Flux reduction through automatic adaptation of the motor current to the prevailing load conditions with closed-loop control modes V/f (ECO) and vector without sensor (SLVC) and savings of up to 5 % under partial load conditions
Hibernation mode dependent on set points in the process
High efficiency η ≥ 98 %
Local commissioning without specialized knowledge of converters thanks to default settings and graphical user interface
Unique: SINAMICS SD memory card for pre-parameterization and cloning of converter data sets
Data backup for easy replacement
Commissioning/diagnostics and controlling of converters
Four integrated PID controllers Distributed closed-loop control for motor-independent process control without higher-level controller (PLC)
Three freely programmable digital timer switches Control for freely selectable daily and weekly programs
