Description
| คุณสมบัติ | Value |
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V ac |
| Current Rating | 19 A |
| For Use With | AC Motors |
| Series | SINAMICS G120 |
| IP Rating | IP20 |
| Drive Type | Vector Control |
| STO | No |
| Filter Included | Yes |
| Overall Width | 185mm |
| Overall Depth | 334mm |
| Overall Length | 189mm |

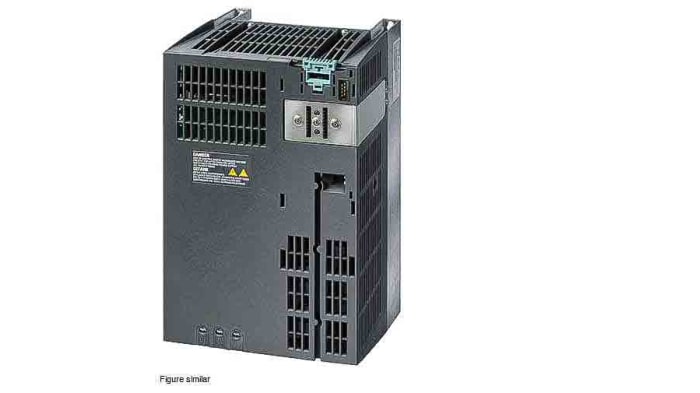

SINAMICS G120 Power Module PM 250 with integrated Class A filter capable of energy recovery. 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 7.5kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature 0 to +50 °C Power low overload: 11kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature 0 to +40 °C 334x 189x 185 (HxWxD).
