Description
| คุณสมบัติ | Value |
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V |
| Current Rating | 19 A |
| Output Frequency | 0 → 550Hz |
| Series | SINAMICS G115D |

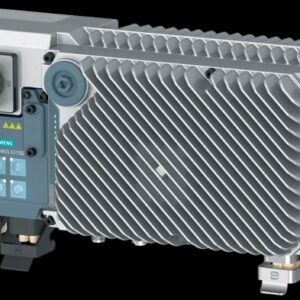

The Siemens SINAMICS G115D wall-mounted distributed drive system has a basic continuous motion for applications in conveyor technology with a focus on the intralogistics and airport industries as well as for simple, horizontal applications in the automotive and food, beverage and packaging industries. It is a 3 phase AC inverter distributed drive system that provides fully preconfigured and ready-to-connect solutions in a modular concept that includes the converter, motor and gearbox. The converter supports three-phase asynchronous motors with efficiency class up to IE3 or high-efficiency synchronous reluctance motors with efficiency class IE4.
Rated power of 7.5 kW
Rated output current of 19 A
FSC converter frame size
AS-interface communication
Plug-in connection with daisy chain
3 phase AC inverter drive
Supports three-phase asynchronous motors
Integrated RFI suppression filter for category C2
