Description
| คุณสมบัติ | Value |
| Coil Voltage | 115V ac |
| Contact Configuration | 4PDT |
| Mounting Type | Plug In |
| Switching Current | 6A |
| Latching | No |
| Number of Poles | 4 |
| Terminal Type | Screw |
| Maximum Switching Voltage AC | 230V |
| Maximum Switching Voltage DC | 24V |
| Length | 22.5mm |
| Height | 28mm |
| Depth | 28mm |
| Series | LZX |
| Application | Power |

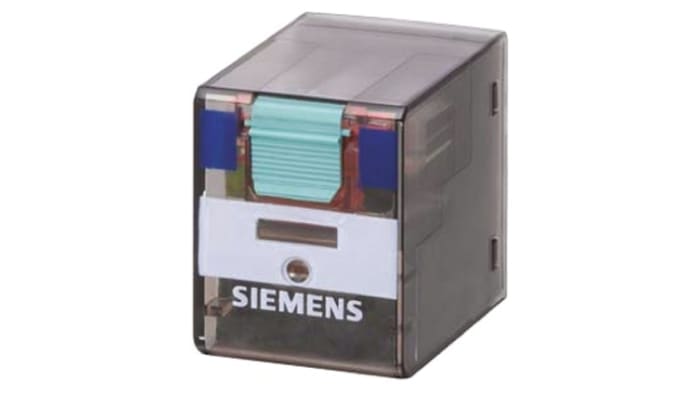

LZS Plug-in Relay
A range of plug-in coupling relays from Siemens available both as complete devices and as single modules for self assembly or spares. The complete LZS devices consist of a socket, plug-in relay, hold/reject clip, LED module and inscription label. All designs boast tried and tested screw or push-in, spring loaded terminals with hard gold-plated contacts for optimum interaction with electronic controls. The PT relay design does not feature a latching mechanism.
Tested to AC-15 and DC-13 switching capacity
Vibration proof connection
