Description
| คุณสมบัติ | Value |
| Power Rating | 220 kW |
| Phase | 3 |
| Supply Voltage | 230 → 440 V |
| Current Rating | 410 A |
| IP Rating | IP00 |
| Overall Width | 304mm |
| Overall Length | 339.7mm |
| Overall Depth | 455mm |

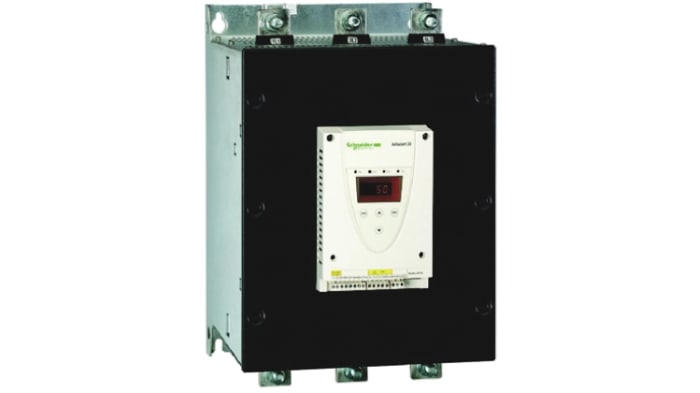

Altistart ATS 22
The ATS22 is a simple to use, three phase digital softstart with embedded bypass function for a wide range of applications.,Complete with adjustable electronic overload and fieldbus communications.
Compact size
Simple connection
Easy to commission
Built-in bypass
3 programmable logic inputs
1 PTC input
2 relay outputs
Motor thermal protection
Overvoltage protection
