Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 63A |
| Tripping Characteristics | Type D |
| Range | Acti 9 |
| Model Number | C120 |
| Series | A9N1 |
| Mounting Style | DIN Rail Mount |

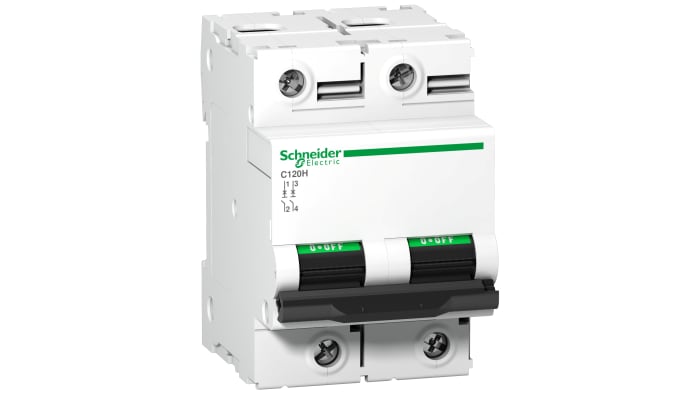

The Schneider Electric A9N18500 is a Acti9 C120H is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, D tripping curve. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees that contacts open physically and allows work to be carried out safely on the downstream circuit. Its fast closing mechanism improves its service life. The product can be clipped on a DIN rail.
IP degree of protection IP20
Mercury free
