Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V |
| Number of Poles | 2 |
| Contact Current Rating | 5 A |
| Normal State Configuration | 2NO |
| Range | TeSys |

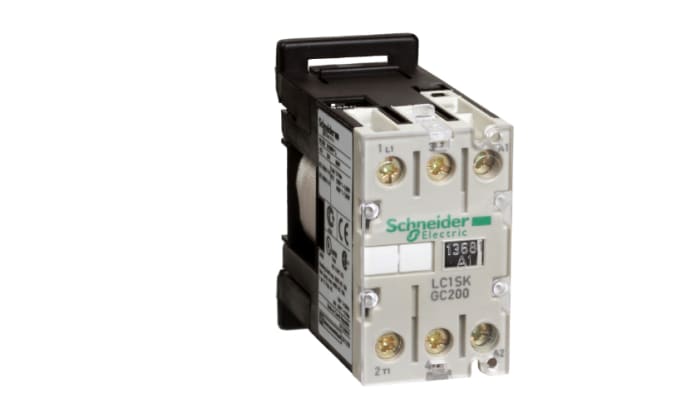

The Schneider Electric TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 230V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals.
It procures high reliability and durability for operating rates until 1200 cycles/hour and ambient temperature -20/+50°C
