Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 66 A |
| Power Rating | 37 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | TeSys |
| Function | Reversing |

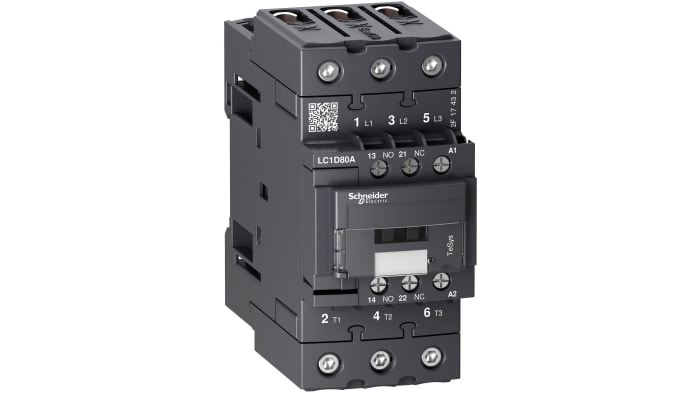

The Schneider Electric TeSys D series is a contactor which has a without built in suppressor module coil technology. It has control circuit voltage of 48 V ac. It is used in applications like resistive load and motor control. The type of connection for control circuit is through screw clamp terminal.
IP degree of protection is IP20 front face conforming to IEC 60529
Ambient operating temperature is -40 to 60 °C
