Description
| คุณสมบัติ | Value |
| Coil Voltage | 440 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 32 A |
| Power Rating | 7.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 300 V dc, 690 V ac |
| Range | TeSys D |
| Series | LC1D |
| Terminal Type | Lug Ring Terminal |
| Width | 45mm |
| Depth | 86mm |
| Minimum Operating Temperature | -5°C |
| Length | 77mm |
| Maximum Operating Temperature | +60°C |

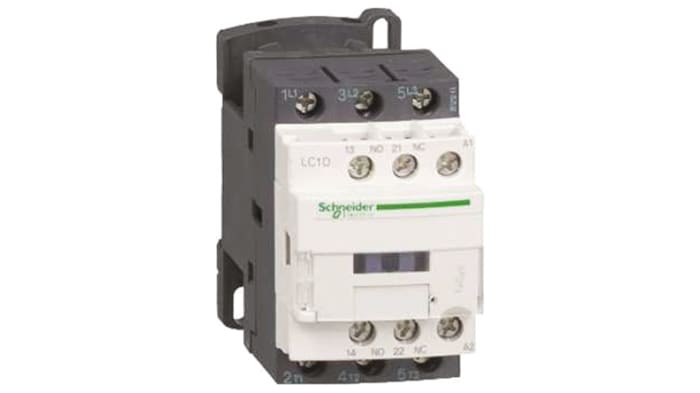

Schneider Electric TeSys D LC1D (LC1D186R7) Reversing / Non-Reversing Contactors and Control Relays.
TeSys D contactors provide you with a quick and easy set-up all complying to international standards. A neat and compact Control Relay Contactor with 40 A to 65 A plus models with EverLink terminal technology.
TeSys D provide integration in control systems.
Create motor starters.
Switching contactor, relay coils.
Power control and signalling equipment.
