Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 4A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Rated DC Voltage | 72V |
| Range | SENTRON |
| Model Number | 5SL6504-7 |
| Series | 5SL6 |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

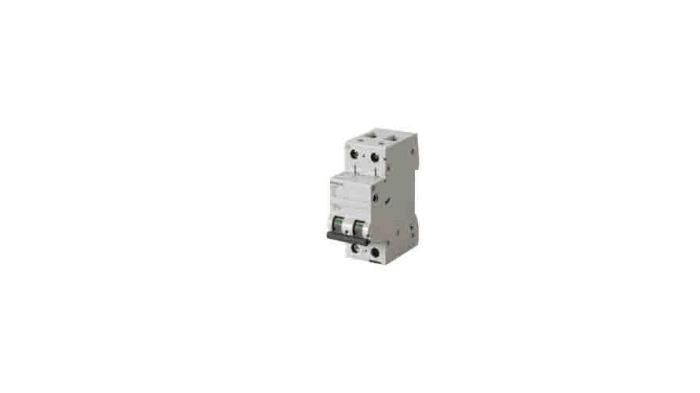

The Siemens 5SL6504-7 Miniature Circuit Breakers operate at 72 V DC and 4 A, at AC. It has switching capacity of 6kA. These can be used as main switches for the disconnection or isolation of plants. These are also suitable for the quick and easy mounting of additional components, such as auxiliary switches and fault signal contacts.
Tripping characteristic class-C.
Number of poles-2
