Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 20 A |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC1D |
| Range | TeSys D |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 90mm |
| Length | 85mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |

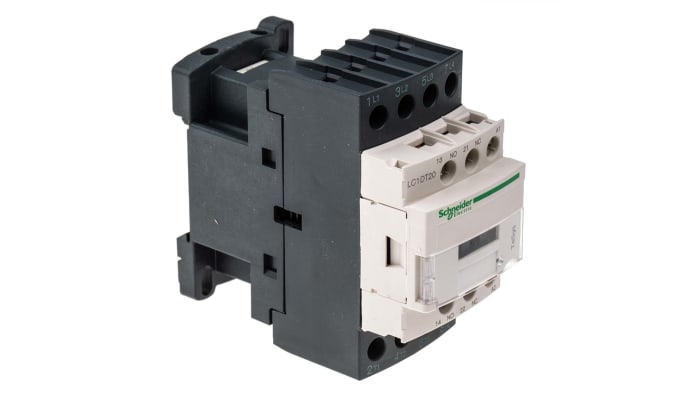

Schneider Electric LC1DT20P7 Contactor
The Schneider Electric LC1DT20P7 model is a 4 pole contactor featuring a 230 V ac operating coil, with an AC-3 full load current rating of 20 A.
• Compact design with a length of 85mm and a depth of 90mm to take up minimal space on your panel
• Plate or rail mounting for installation flexibility
• Contains no mercury, toxic heavy metals or polyvinyl chloride (PVC) to increase sustainability and safety
Applications
• HVAC (heating, ventilation and air conditioning) systems
• Lighting circuits
• Food-processing facilities
How does this contactor connect to circuits?
This contactor is fitted with screw terminals to make a secure connection and is clearly labelled to simplify installation.
