Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 20 A |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC1K |
| Range | TeSys K |
| Terminal Type | Solder Pin |
| Width | 45mm |
| Depth | 57mm |
| Length | 58mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |

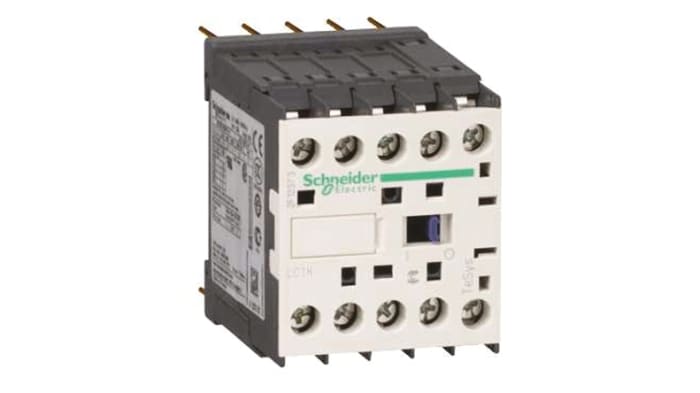

The Schneider Electric LC1K090045E7 is a LC1K series 4 pole Tesys K contactor used for motor control.
Poles description 4P
Pole contact composition 4 NO
Rated operational current 20 A
Control circuit voltage 48 V AC
