Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | LP4K |
| Range | TeSys K |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NO |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 57mm |
| Length | 58mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |

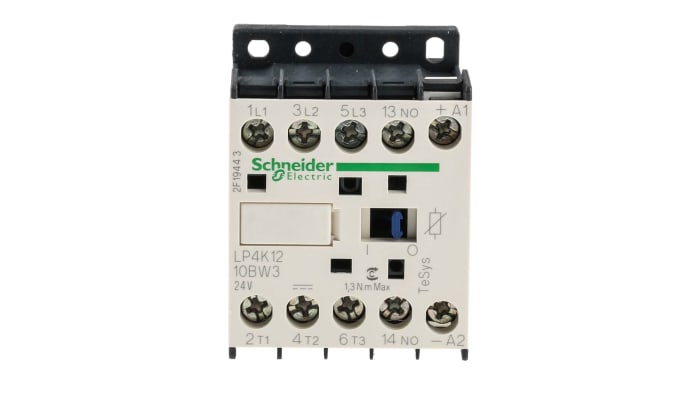

Schneider Electric LP4K1210BW3 Miniature Contactor
The LP4K1210BW3 is a miniature 3 pole low consumption contactor featuring a 24 V dc operating coil, an AC-3 full load current of 12 A and a normally open auxiliary contact.
Features & Benefits
• UL94V1 (Underwriters’ Laboratory) certification for flame retardance indicates it stops burning within 30 seconds
• Wide operating temperature range of -25°C to +50°C for use in demanding environments
• Panel and DIN mounting options for versatility
Applications
• Industrial lighting systems
• Air-conditioning units
• Construction equipment
How much does this contactor weigh?
This contactor has a light weight of 235g, which makes it easy to handle and minimises strain on your setup.
What’s the operating voltage of this contactor?
The operating voltage of this contactor is 690V. It’s designed to function with AC (alternating current) supply.
