Description
| คุณสมบัติ | Value |
| Current Rating | 8A |
| Fuse Size | 10 x 38mm |
| Voltage Rating | 600V ac |
| Overall Length | 38mm |
| Diameter | 10mm |
| Overall Dimensions | 10 x 38mm |
| Application Category | aR |
| Series | 3NC |
| Fuse Standard | IEC 60269 |

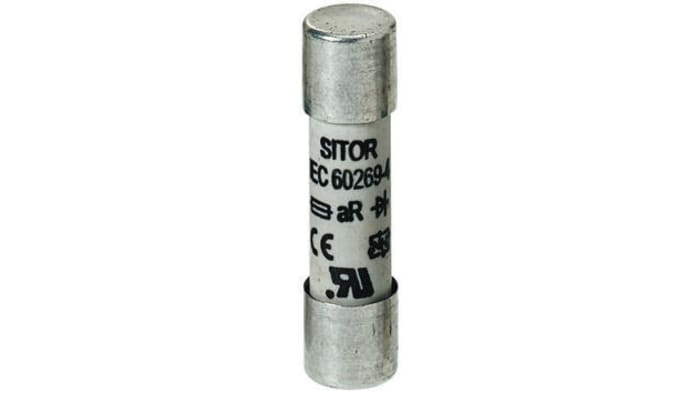

SITOR Cylindrical Fuses, Size 10 x 38 mm, Type aR
Semiconductor protection fuses, 3NC1 Series
Operating class aR (full-range semiconductor protection)
For protecting high-quality devices and components, such as semiconductor contactors, electronic relays (solid state), converters with fuses in input and in DC intermediate circuit, UPS systems and softstarters for motors of up to 100 A
Standards
IEC 60269-4
Approvals
UL, CSA
Approvals
UL, CSA
Standards
IEC 60269-4
