Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 400 V ac |
| Series | 3RT2 |
| Range | SIRIUS Innovation |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NC |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 73mm |
| Length | 57.5mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
Contactors – 3RT2 Range
The 3RT2 contactors are climate-proof and are suitable and tested for use worldwide, sizes S00 to S2, up to 37 kW
Size S00, up to 7.5 kW
Size S0, up to 18.5 kW
Size S2, up to 37 kW
Screw connection / Spring Clamp
Impulse voltage resistance 6 kV
Insulation voltage 690 V
Real loss power only 4 W
Designation K according to DIN 40719 (extendable to IEC 204-2) & IEC 750; Q according to DIN EN 61346-2
Note
Screw terminals can only be used with screw terminal overloads and spring terminals can only be used with spring terminal overloads.
Approvals
CE, UL, CSA, CCC

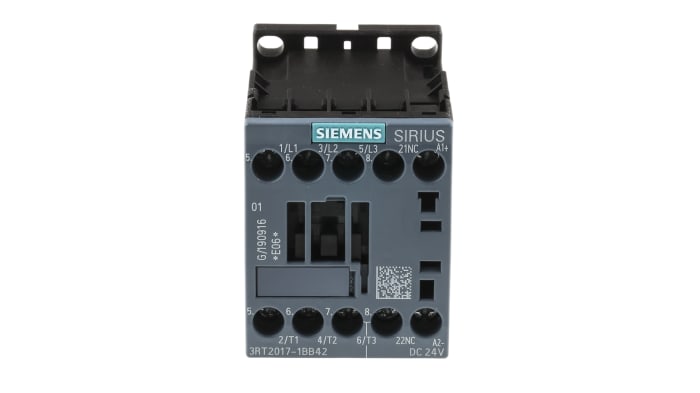

Siemens SIRIUS Innovation 3-Pole Contactor, 5.5kW, 12A – 3RT2 Series – 3RT2017-1BB42
This 3-pole contactor from Siemens’ SIRIUS Innovation range is a space-saving control and protection solution for industrial motors and other high-power loads. It has a robust thermoplastic housing that’s durable and weatherproof, making it suitable for use in harsh environments. Thanks to a power rating of 5.5kW, it’s ideally suited to heavy-duty applications, while low power loss of 1.2W improves energy efficiency in production and assembly lines. For short-circuit protection, the contactor has integrated fuses that cut power when a fault occurs. It also has a rated surge voltage of 6kV, so it can withstand sudden voltage spikes without damage.
• Screw terminals for quick and simple installation
• IP20 (ingress protection) rating indicates resistance to dust and objects larger than 12mm in size
• Mechanical life of 30 million operations for reliably long service
• Can be rotated +/-180° on a vertical mounting surface for optimal flexibility
What is surge voltage?
Surge voltage, also known as ‘transient voltage’ is a sudden, unexpected and irregular rise in voltage in a power system. It can cause severe damage to electrical equipment if safety devices aren’t installed to manage it.
