Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 25 A |
| Power Rating | 11 kW |
| Normal State Configuration | 2 NO + 2 NC |
| Range | SIRIUS |
| Series | 3RT2 |

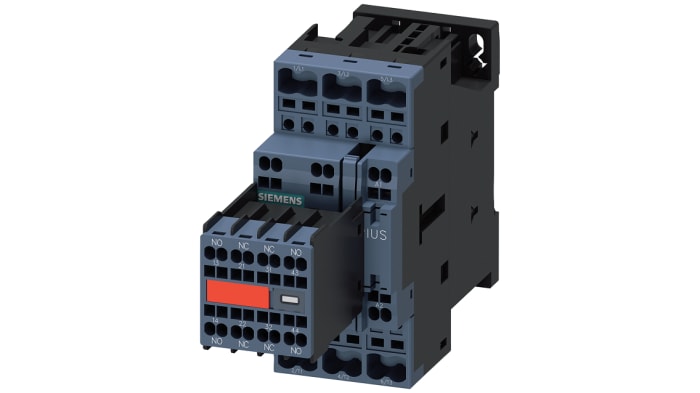

The Siemens power contactor has screw and Snap-On mounting onto 35 mm standard mounting rail according to DIN EN 60715. +/-180° rotation is possible on vertical mounting surface and can be tilted forward and backward by +/- 22.5° on vertical mounting surface. It has ambient temperature range from -25 to +60 °C during operation and -55 to +80 °C during storage.
6KV Surge voltage resistance
Side-by-side mounting possible
IP20 rated on the front according to IEC 60529
Spring-loaded terminals
Finger-safe, for vertical contact from the front
