Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 1.6A |
| Tripping Characteristics | Type D |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Series | 5SY4 |
| Range | SENTRON |
| Model Number | 5SY4215-8 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 76mm |
| Length | 36mm |
| Depth | 90mm |
| Terminal Contact Type | Screw |

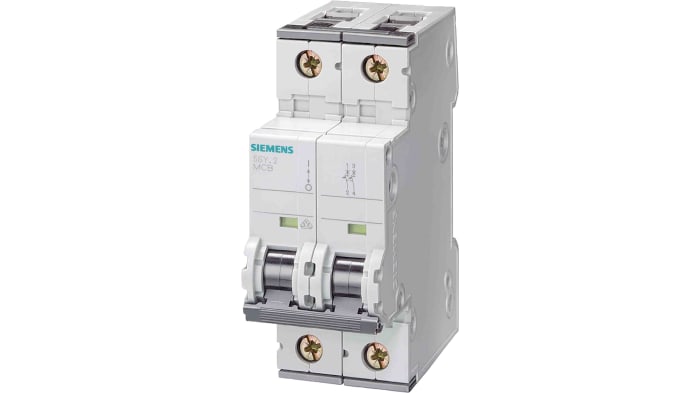

The miniature circuit breaker provides voltage of 400 V with 2-pole configuration. In the event of an overload or short-circuit, circuit breakers safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The Siemens miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices. It is a simple distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Current switching capacity 10kA
AC operating current 1.6 A
