Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 40A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 72V |
| Range | SENTRON |
| Series | 5SY8 |
| Model Number | 5SY8240-7 |
| Breaking Capacity at Maximum Voltage Rating | 5 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

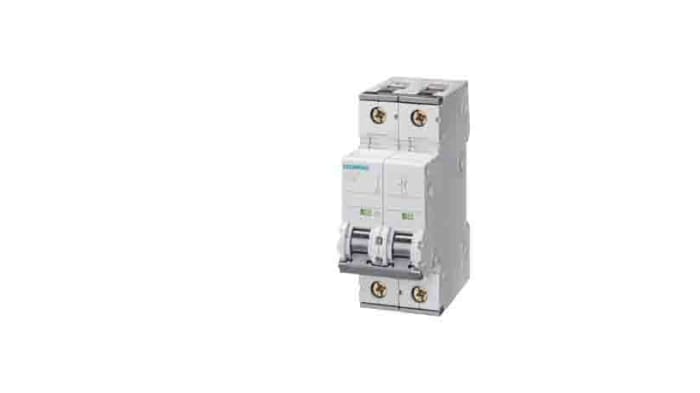

The Siemens 5SY8240-7 Miniature Circuit Breakers operate at 72 V DC and 40 A at AC. It has switching capacity of 15 kA according to IEC 60947-2 at DC. These are ideal for application in large non-residential buildings and in industries.
Properties for main switches in accordance with EN 60204-1.
Halogen-free.
Number of poles- 2
