Description
| คุณสมบัติ | Value |
| AC or DC Output Voltage | dc |
| Input Voltage | 230V ac |
| Output Voltage | 12V dc |
| Output Current | 900mA |
| Power Rating | 10.8W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 90mm |
| Hazardous Area Certification | ATEX |
| Series | LOGO!POWER |
| Standards Met | CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 |
| Mounting Type | DIN Rail Mount |
| Output Voltage Adjustment Range | ±3% |
| Depth | 53mm |
| Width | 18mm |
| Load Regulation | 0.1% |
| Special Features | Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio |
| MTBF | 3793080h |
| Efficiency | 78% |
| Ripple And Noise | 200 (Ripple)mV Pk-Pk |
| Minimum Temperature | -25°C |
| Maximum Temperature | +70°C |

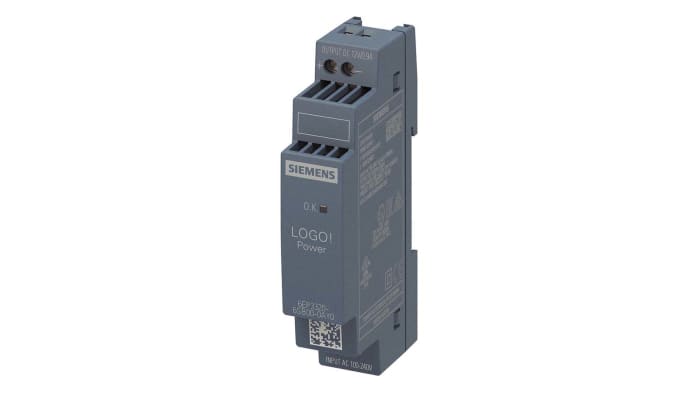

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 10.8W Power Rating – LOGO!POWER Series – 6EP3320-6SB00-0AY0
Prevent equipment downtimes and production interruptions with this switch-mode DIN rail power supply from Siemens. It’s a reliable and efficient 900mA (milliampere) miniature electric power backup system that converts incoming current to supply the correct voltage and current to your applications. A flat and stepped profile design makes this 70g lightweight unit easy to install in confined spaces such as distribution boards. You can confidently use this flexible power supply with its wide-range input for single-phase systems and direct current (DC) networks with numerous applications such as powering actuators, solenoids and motors.
• Parallel-enabled circuit configurations allow current flow in multiple directions to establish greater output and improve efficiency
• Load regulation of 0.1% ensures the reliable maintenance of output voltage during current changes, which means equipment receives the correct voltage to function
• Operating temperature range of -25°C to +70°C means you can use the product in harsh environments
Is it safe to touch this unit?
You can safely touch this unit without worrying about electric shocks. An IP20 (ingress protection) rating means it’s dust-proof and touch-proof, so enhances workplace safety.
