Description
| คุณสมบัติ | Value |
| Power Rating | 5.5 kW, 7.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 18.2 A, 21.5 A |
| Output Frequency | 0 → 550Hz |
| For Use With | SINAMICS G120C |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profinet |
| Drive Type | Vector Control |
| STO | Yes |
| Mounting Type | Panel Mount |
| Overall Depth | 196mm |
| Overall Length | 100mm |
| Overall Width | 225mm |

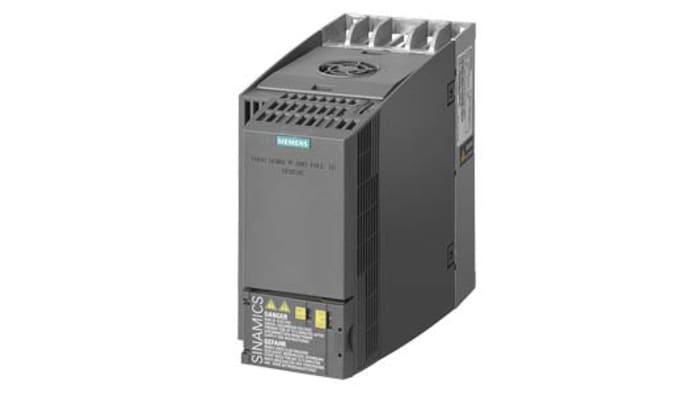

SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN SIZE: FSB 196x 100x 225,4 (HXWXD) EXTERNAL 24V
