Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24V dc |
| Output Current | 1.3A |
| Power Rating | 31.2W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 100mm |
| Series | SITOP PSU6200 |
| Output Voltage Adjustment Range | 22.2 → 26.4V |
| Mounting Type | DIN Rail Mount |
| Width | 25mm |
| Depth | 88mm |
| Standards Met | cCSAus (CSA C22.2 No. 60950-1, UL 60950-1), CE Certified, cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259, EN 55022 Class B, EN 61000-3-2, EN 61000-6-2 |
| Minimum Temperature | -25°C |
| Efficiency | 86.3% |
| Ripple And Noise | 30mV |
| Special Features | LED Display |
| Maximum Temperature | +70°C |

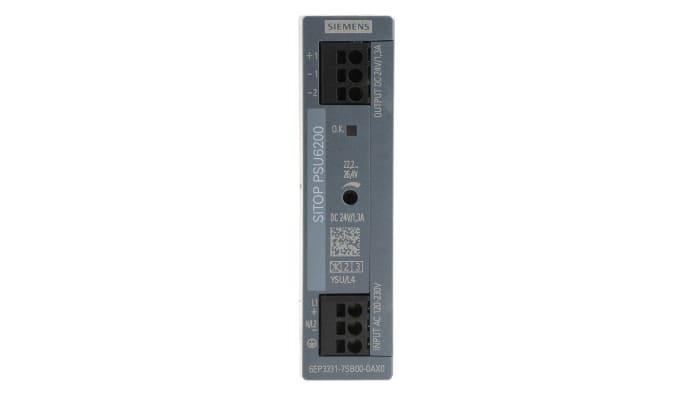

Siemens Switch-Mode DIN Rail Power Supply, 24V DC Output, 31.2W Power Rating – SITOP PSU6200 Series – 6EP3331-7SB00-0AX0
Keep your DIN-rail-connected components running smoothly with this power supply unit from Siemens. It functions as a regulator, converting unstabilised input voltage and current to values that can be used by connected equipment. The narrow design, with a width of 25mm, makes this unit a good option for busy setups. Air vents on the frame allow for passive cooling from the environment, preventing overheating and improving performance. This power supply is energy efficient, with low power losses of 5W when in operation and 0.8W in no-load conditions, making it an ideal choice for components that are often in standby mode. You’ll find it used to power industrial control boxes.
• Push-in terminals for easy and tool-free installation
• Wide operating temperature range of -25°C to +70°C for use in demanding industrial environments
• Adjustable output voltage for versatile functionality
• Green LED (light-emitting diode) status indicator for easy diagnosis and troubleshooting
What’s the voltage rating of this unit?
This power supply unit has voltage ratings of 230V for AC (alternating current) and 240V for DC (direct current) supplies.
