Description
| คุณสมบัติ | Value |
| Power Rating | 0.37 kW |
| Phase | 1 |
| Supply Voltage | 230 V ac |
| Current Rating | 2.3 A |
| Output Frequency | 0 → 550Hz |
| For Use With | AC Motors |
| Series | SINAMICS V20 |
| IP Rating | IP20 |
| Field Bus Communication Type | USS/Modbus RTU |
| STO | No |
| Mounting Type | Side by Side Mount, Wall Mount |
| Overall Length | 68mm |
| Overall Depth | 142mm |
| Standards Met | CE, C-Tick (RCM), cULus, EN 60204-1, EN 61800-3, EN 61800-5-1, KCC |
| Overall Width | 107.8mm |

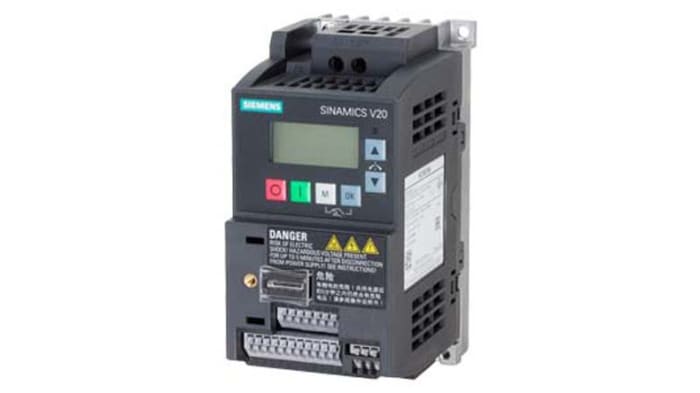

Siemens Single-Phase Inverter Drive, 230V AC – SINAMICS V20 Series – 6SL3210-5BB13-7BV1
Use this inverter drive from Siemens to convert frequencies to your electrical appliance to ensure it receives the proper input. The high-functioning device offers a broad output frequency range from 0 to 500Hz. It has a rated power of 0.37kW with an additional 60 seconds overload up to 150% for safe operations in current surges. You can set the parameters easily using the control buttons on the enclosure. Install this inverter on a wall or by push-through mounting and screws for a reliably secure fit.
• IP20 (ingress protection) rating indicates touch-protection against items up to 12mm in size
• Compact 68mm width for space-saving, side-by-side mounting
• Innovative cooling design prevents overheating
What kind of field bus communication works with this inverter drive?
This inverter can be connected to either a USS (universal serial interface) or Modbus remote terminal unit communication system. When connected to a USS protocol, it enables data reading and writing from the central hub to the output portal. The Modbus protocols allow swift transfer of data through simple 16-bit structures. By connecting it to either of these communication terminals, you can automate the inverter process and remotely monitor the data.
