Description
| คุณสมบัติ | Value |
| Power Rating | 0.37 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 1.3 A |
| Output Frequency | 0 → 550Hz |
| For Use With | AC Motors |
| Series | SINAMICS V20 |
| IP Rating | IP20 |
| Field Bus Communication Type | Modbus |
| STO | No |
| Control Panel | Yes |
| Filter Included | Yes |
| Overall Length | 90mm |
| Overall Width | 150mm |
| Overall Depth | 146mm |
| Standards Met | CE, c-tick KC, cULus, EN 60204-1, EN 61800-3, EN 61800-5-1 |
| Interface | Modbus RTU, USS |

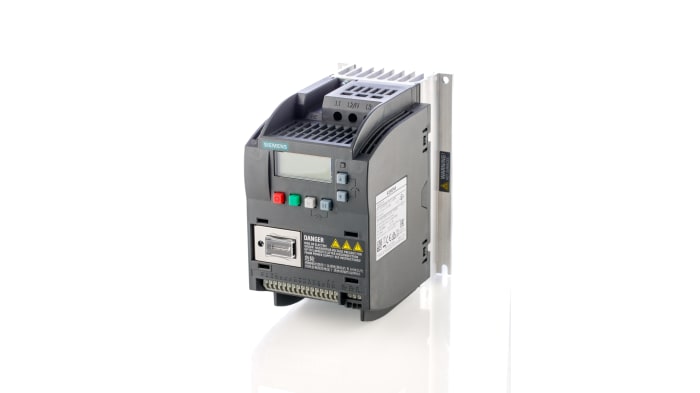

Siemens Inverter Drive, 3 Phase, 400V AC – SINAMICS V20 Series – 6SL3210-5BE13-7CV0
Use this inverter from Siemens’ modular SINAMICS V20 series with your compressors, pumps and conveyor belts to convert DC voltage to a 3-phase AC supply. This compact, versatile solution includes features such as integrated energy and water flow monitoring, along with a hibernation mode that lets you track and conserve energy use. Thanks to an advanced cooling technique and coated electronics board, you can rely on it in harsh environments. This efficient component is well-suited to basic drive applications in the process and manufacturing industries.
• Options of push-through, wall mounting and side-by-side placement for simple installation
• Convection cooling for safe use in busy setups
• Output frequency of 0 to 550Hz and a 400V rating deliver robust capacity
• Part of the modular Sinamics series for high-performance motion control applications so you can customise solutions to your individual needs
Will this drive operate in freezing temperatures?
Yes, this inverter drive will function in temperatures down to -10°C and right up to +60°C, for safe operation in a range of challenging industrial environments.
Siemens Sinamics V20 Range
