Description
| คุณสมบัติ | Value |
| Power Rating | 37 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 61 A, 64 A |
| Output Frequency | 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz |
| For Use With | SINAMICS G120C |
| Series | 6SL3210 |
| IP Rating | IP20 |
| Field Bus Communication Type | EtherNet, IP, PROFINET |
| Drive Type | Vector Control |
| STO | Yes |
| Mounting Type | Panel Mount |
| Interface | Ethernet |
| Overall Width | 237mm |
| Overall Length | 200mm |
| Special Features | Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control |
| Overall Depth | 472mm |

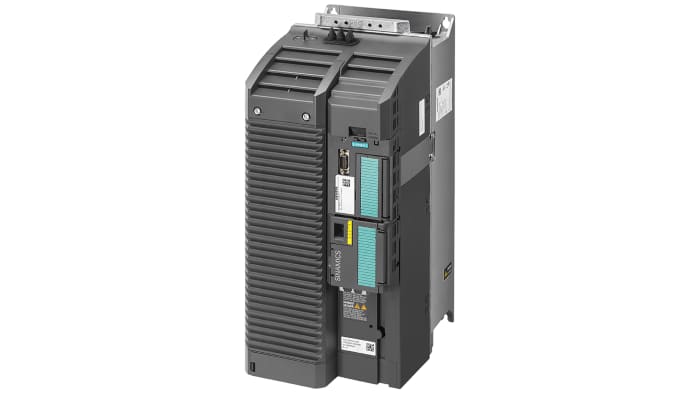

SINAMICS G120C RATED POWER 37.0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO, 1AI, 1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN SIZE: FSD 472x 200x 237(HXWXD) EXTERNAL 24V
