Description
| คุณสมบัติ | Value |
| Power Rating | 18.5 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V ac |
| Current Rating | 36 A |
| For Use With | AC Motors |
| Series | SINAMICS G120 |
| IP Rating | IP20 |
| STO | No |
| Drive Type | Vector Control |
| Filter Included | Yes |
| Overall Length | 275mm |
| Overall Width | 204mm |
| Overall Depth | 512mm |

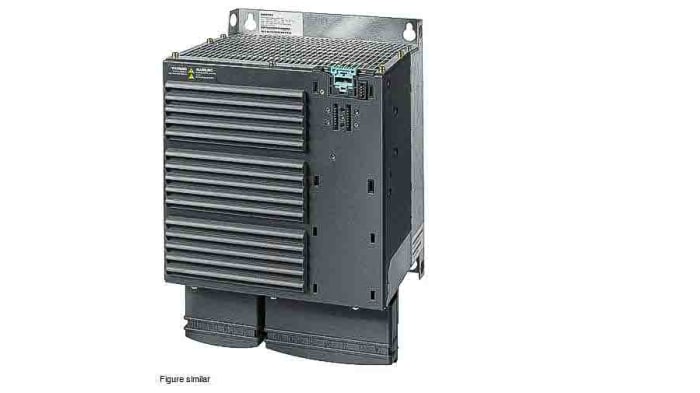

SINAMICS G120 POWER MODULE PM250 WITH BUILT IN CL. A FILTER POSSIBILITY OF REGENERATION 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 18,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP 0 TO +50 DEG C OUTPUT LIGHT OVERLOAD: 22KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP 0 TO +40 DEG C 512 X 275 X 204 (HXWXD).
