Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 32A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Rated DC Voltage | 72V |
| Series | 5SL6 |
| Model Number | 5SL6532-7 |
| Range | SENTRON |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |
| Terminal Contact Type | Screw |

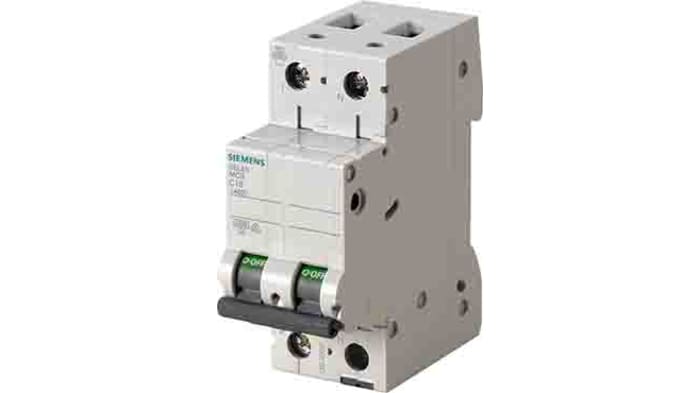

The Siemens SENTRON series miniature circuit breaker has a 1+N pole and has a current breaking capacity of 6kA. In the event of an overload or short-circuit this miniature circuit breakers safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The device have a uniform design and, with the appropriate accessories, can be expanded by many additional functions.
Type C Tripping characteristic
simple to mount and install
