Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 300mA |
| Tripping Characteristics | Type C |
| Model Number | 5SY6214-7 |
| Series | 5SY6 |
| Range | SENTRON |
| Breaking Capacity at Maximum Voltage Rating | 5 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 90mm |
| Depth | 76mm |

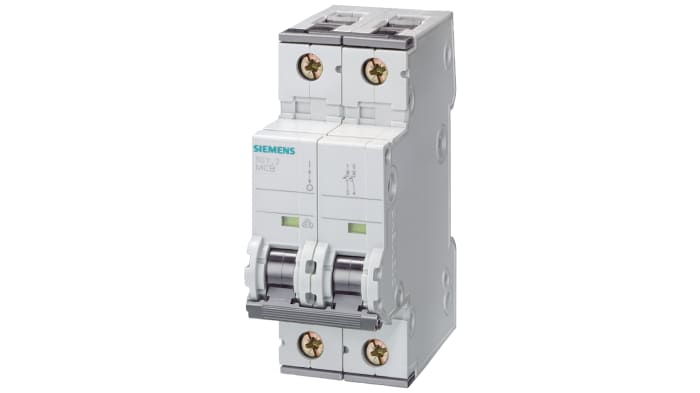

The Siemens 5SY6 series two-pole miniature circuit breaker has a current rating of 0.3 A and 6 kA breaking capacity. The miniature circuit breaker is the fuse for short-circuit protection. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Protection class IP= IP20, with connected conductors
halogen-free, silicon-free, sealable
Supply voltage= 400 Vac
