Description
| คุณสมบัติ | Value |
| Power Rating | 1.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 6 A, 7.4 A |
| Output Frequency | 0 → 240 (Vector Control) Hz, 0 → 550 (V/F Control) Hz |
| For Use With | AC Motors |
| Series | SINAMICS G120C |
| IP Rating | IP20 |
| Field Bus Communication Type | Profinet |
| STO | Yes |
| Drive Type | Vector Control |
| Overall Length | 73mm |
| Overall Depth | 173mm |
| Standards Met | CE, C-Tick (RCM), cUL, EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, UL |
| Interface | Ethernet/IP, PROFINET |
| Overall Width | 178mm |
| Special Features | Sensorless Vector Control, Variable Frequency Eco Linear/Square-Law, Variable Frequency Linear/Square-Law/Parameterizable, Variable Frequency with Flux Current Control |

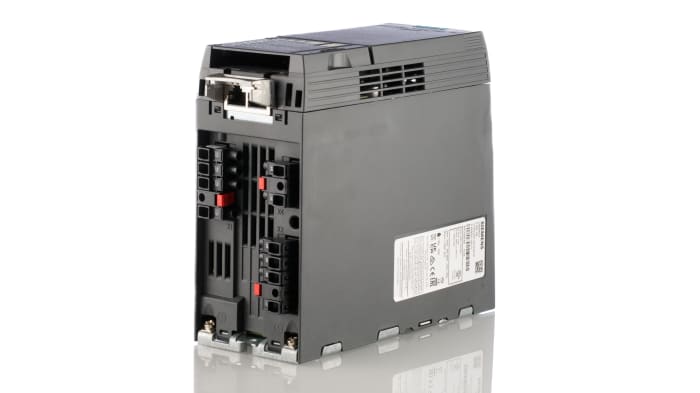

Siemens Inverter Drive, 3 Phase, 400V AC – SINAMICS G120C Series – 6SL3210-1KE15-8UF2
This inverter drive from Siemens connects to AC (alternating current) motors to automate and control motion sequence systems. You can use it with devices such as conveyors, pumps and compressors. Its rugged build makes it suitable for a range of harsh environments, including those experiencing temperatures from -10°C to +40°C. Advanced features including sensorless vector and variable frequency controls give you state-of-the-art performance, while the PROFINET fieldbus interface makes it easy to integrate this unit into your system.
• Controls asynchronous (induction) motors ranging from 0.37kW up to 18.5kW (0.5hp up to 25hp)
• Compact design enables installation in machine control enclosures and control cabinets so you can maximise your space
• Dimensions of 173 (D) x 73 (L) x 178mm (W) for portability and easy handling
What degree of protection does this device have?
This drive has been certified with an IP20 (ingress protection) rating, which indicates that it’s touch-proof. As it’s not protected against water infiltration or small particles, it should be protected from dust, moisture and water splashes.
