Description
| คุณสมบัติ | Value |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 400 → 500V |
| Output Voltage | 24V |
| Output Current | 10A |
| Power Rating | 23W |
| Type | Stabilised |
| Series | SITOP |

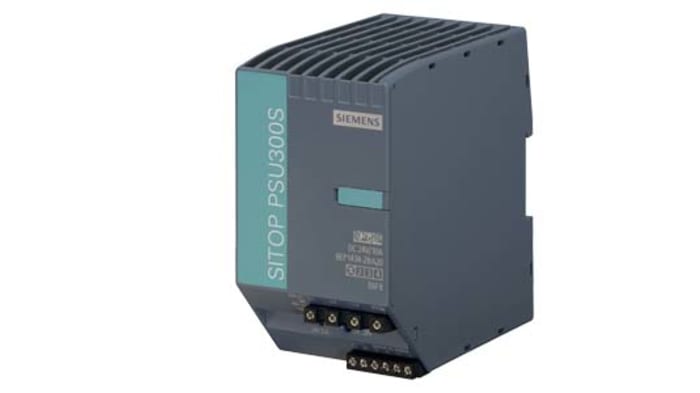

The Siemens SITOP PSU300S 24 V and 10 A Stabilized power supply with input of 400 V to 500 V 3 AC and output of 24 V DC and 10 A. Requirements are 3-pole connected miniature circuit breaker 3 to 16 A characteristic C or circuit breaker 3RV2011-1DA10 setting 3 A or 3RV2711-1DD10 UL 489-listed, DIVQ. Safety extra-low output voltage Uout according to EN 60950-1 and EN 50178 ,transformer according to EN 61558-2-16.
Controlled, isolated DC voltage
3-phase AC
Green LED for 24 V OK
Relay contact NO contact, rating 60 V DC and 0.3 A for 24 V OK
Constant current characteristic
Overload capability 150 % Iout rated up to 5 s/min
